Lifting equipment moves loads and people that cannot be handled safely by manual effort. The category includes compact chain hoists, wire-rope systems, tower cranes, construction hoists, and suspended work platforms.
These machines do very different jobs. Selection should begin with the task and site, not with the highest capacity in a catalog. Oversized equipment increases cost and complexity. Undersized equipment creates serious risk.
Define What Must Be Lifted
Start with the load. Record its actual weight, dimensions, center of gravity, lifting points, and stability. Include attachments, containers, and rigging in the total.
Ask:
- Is the load material, equipment, or people?
- How often will it be lifted?
- How high and how far must it move?
- Does it need precise positioning?
- Will the load change during the project?
- Is the lift indoors or outdoors?
- Are hazardous materials involved?
Never estimate weight from appearance. Use drawings, manufacturer data, or verified weighing methods.
Understand Working Load Limits
Capacity is not a target. It is a limit under specified conditions. The working load limit of every component in the lifting path must be adequate.
A system may include a hoist, trolley, beam clamp, hook, sling, shackle, and lifting point. The lowest-rated part controls the system. Sling angles can also increase tension, so a two-leg sling does not automatically lift twice the capacity of one leg.
Dynamic movement, wind, shock loading, and uneven load sharing may increase forces. A competent person should plan unusual or critical lifts.
Choose a Hoist for Controlled Vertical Lifting
Chain hoists are useful in factories, workshops, warehouses, maintenance areas, and some construction tasks. Manual units suit occasional lifts and locations without power. Electric units improve speed and reduce operator effort. Air hoists may suit certain hazardous or wet environments.
When comparing electric hoist systems, consider:
- Rated capacity
- Lift height
- Lifting speed
- Duty cycle
- Headroom
- Power supply
- Trolley type
- Control voltage
- Brake design
- Environmental protection
Frequent production lifting requires a higher duty rating than occasional maintenance, even when the load weight is the same.
Select Cranes for Reach and Site Coverage
Cranes combine vertical lifting with horizontal movement. Tower cranes provide height and reach for large building projects. Mobile cranes offer flexibility and faster relocation. Overhead cranes serve defined factory areas.
Crane selection depends on the load chart, not just the headline capacity. A crane’s lifting ability normally decreases as radius increases. Boom configuration, wind, ground conditions, and setup all matter.
For construction, evaluate:
- Maximum required hook height
- Maximum working radius
- Heaviest load at that radius
- Building growth and climbing needs
- Assembly and dismantling space
- Nearby structures and power lines
- Foundation or ground support
- Local permits and operator requirements
Use Construction Hoists for Vertical Transport
A crane is not always the best way to move workers and routine materials between floors. Construction hoists can provide repeated vertical transport along a mast.

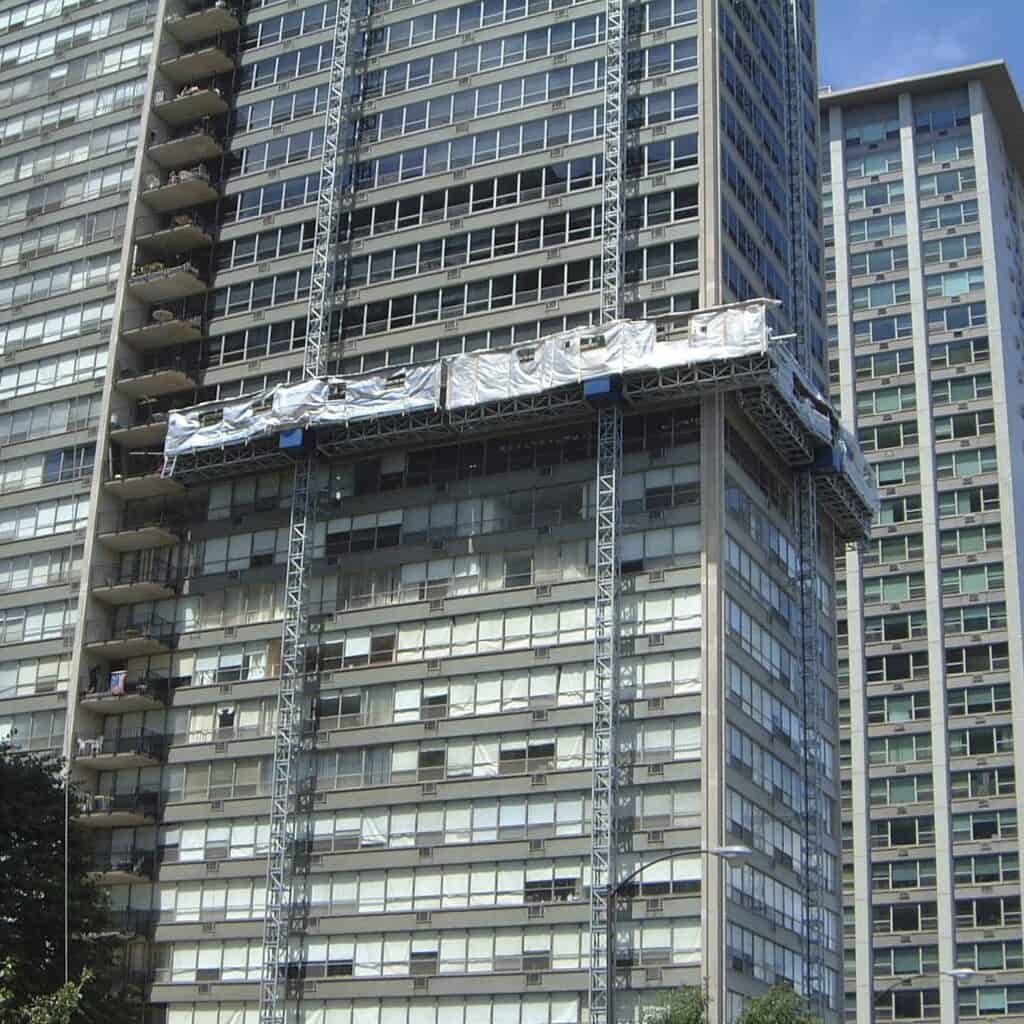

Purpose-built construction access equipment also includes suspended platforms for façade work such as painting, cleaning, installation, and repair. Equipment carrying people must be designed, inspected, and operated for that purpose.
Never lift people with a material-only hoist or improvised platform. Personnel lifting has stricter controls, gates, brakes, fall protection, and emergency procedures.
Account for the Environment
Outdoor equipment faces wind, rain, temperature change, and corrosion. Coastal and chemical sites may need additional protection. Indoor equipment can still face dust, heat, or explosive atmospheres.
Check:
- Permitted temperature range
- Ingress protection
- Corrosion-resistant finishes
- Wind operating limits
- Hazardous-area suitability
- Indoor emissions and noise
- Ground or floor capacity
Wind affects loads with large surface areas, even when they are light. Panels, sheets, and long components can become difficult to control.
Plan the Supporting Structure
The lifting machine must be supported safely. A beam carrying a hoist needs verified capacity. A tower crane needs a designed foundation or approved support. A mobile crane needs adequate ground bearing pressure and correctly placed outriggers.
Do not rely on visual inspection alone. Existing structures may have hidden damage or unknown load history. Engineers should confirm support where required.
Temporary works deserve the same attention as permanent structures. Mats, ties, anchors, and mast connections must follow the approved design.
Match Rigging to the Load
Slings and below-the-hook devices connect the load to the machine. Common options include wire-rope slings, chain slings, synthetic web slings, round slings, lifting beams, and clamps.
Choose rigging based on:
- Load weight and shape
- Edge sharpness
- Temperature
- Chemical exposure
- Required sling angle
- Risk of crushing or slipping
- Lifting-point design
Protect synthetic slings from sharp edges. Do not shorten slings with knots or uncontrolled methods. Hooks should have suitable latches where required, and shackles must be loaded correctly.
Consider Control and Precision
Some tasks only require raising a load clear of the floor. Others need millimeter-level placement.
Dual-speed or variable-frequency controls improve positioning and reduce sudden motion. Trolleys and cranes should accelerate smoothly to control load swing. Remote controls can improve visibility, but they also need secure pairing and emergency-stop functions.
The operator must have a clear view or work with trained signalers. Standard hand signals or reliable radio communication reduce confusion.
Inspect, Maintain, and Train
Selection is only the beginning. Lifting equipment needs pre-use checks, scheduled inspections, preventive maintenance, and documented repairs.
Common inspection points include:
- Hooks and safety latches
- Load chain or wire rope
- Brakes and limit switches
- Controls and emergency stops
- Structural connections
- Slings and shackles
- Labels and capacity markings
Damaged equipment should be removed from service. Repairs must use approved parts and qualified personnel.
Operators, riggers, signalers, and supervisors need training for their roles. Familiarity with one machine does not automatically qualify a person to operate another.
Compare Total Cost, Not Purchase Price
The lowest purchase price may lead to higher downtime, slow lifting, difficult maintenance, or unavailable spare parts.
Compare:
- Installation
- Inspection
- Energy use
- Operator time
- Spare parts
- Service access
- Expected life
- Resale or project relocation
Productivity matters, but it must never replace safe working limits.
Conclusion
The right lifting equipment fits the load, movement, site, environment, and frequency of work. Compact hoists are effective for controlled industrial lifts. Cranes provide reach and coverage. Construction hoists and suspended platforms handle repeated vertical access.
Define the task clearly, verify every capacity, plan the supporting structure, and use correct rigging. Combine good equipment with trained people, inspection, and maintenance. Safe lifting comes from a complete system, not one strong machine.
